無刷驅動器4815B
rushless driver 4815B
產品介紹
feature
BLD-4815B是一款以高性能DSP為運算核心,多功能控制方式直流無刷驅動器。全數字式設計其擁有靈活多樣的輸入控制方式,完善的軟硬件保護功能,驅動器可通過RS-485通信接口與計算機相連,實現參數調整,保護參數,電機參數,加減速時間等參數的設置,
BLD-4815B is a high-performance DSP as the computing core,multi-function control mode DC brushless driver. Full digital design it has a flexible input control mode, perfect software and hardware protection function, the driver can be connected to the computer through the RS-485 communication interface, to achieve parameter adjustment, protection parameters, motor parameters, acceleration and deceleration time and other parameters set.
電機規格/Electricalspecifications:
項目 model | 最小值 minimum | 典型值 Typical values | 最大值 maximum | 單位 unit |
輸入電壓 Input voltage | 14 | 24 | 60 | V |
輸出電流 Output current | 3 | 15 | 15 | A |
欠壓保護 Undervoltage protection | 14 | VDC | ||
過壓保護 Overvoltage protection | 60 | VDC | ||
轉速控制 Speed control | 100 | 3000 | 30000 | Rpm |
重量 Weight | 0.24KG | |||
尺寸 Dimension | 143*80*33(MM) | |||
調速方式 Speed RegulationMode | 1:0-5VDC模擬量輸入 0-5VDC analog input 2:0-100%PWM輸入(PWM頻率范圍:[1Kz-20KHz) 0-100%PWM input(PWM frequency range:[1Kz-20KHz) 3:外接電位器調速 external potentiometer speed regulation 4:通過RS-485通訊設定 set byRS-485 communication | |||
過流保護功能 Overcurrent protectio | 當電流超過工作電流設置值并持續一設定時間后產生過流保護 Overcurrent protection is generated when the current exceeds the set value ofthe operating current and continues for a set time. | |||
過壓 Overvoltage | 當電壓超過60V時產生過電壓保護 0vervoltage protection is generated when the voltage exceeds 60V. | |||
欠壓 Undervoltage | 當電壓低于14V時產生欠電壓保護 Undervoltage protection is generated when the voltage is lower than 14V | |||
霍爾異常 Hall abnormal | 霍爾信號出現異常值 Hall signal has an outlier | |||
加減速時間設置 cceleration or deceleration time Set | 通過軟件上位機軟件可以設置加減速度時間 Abnomal value ofHall signal can be set by the software ofthe upper computer | |||

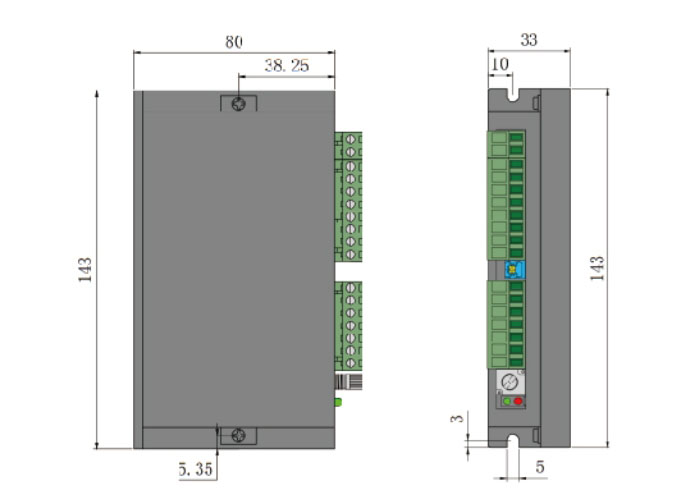

外形尺寸
Dimensions
