無刷驅動器BLD2408A
Brushless driver BLD2408A
產品介紹
feature
BLD2408A直流無刷電機驅動器是本公司利用高性能DSP處理器自主研發完成的,針對小功率直流無刷電機驅動的高科技產品?？蓱?yīng)用于上位機(PLC或單片機等)PWM或模擬量速度控制,可采用手動調速方式(自帶電位器,也可外接電位器手動調速)PID 速度環，電流環控制
啟動停止控制(EN)正反轉控制(F/R)制動快速停車(BRK)過載保護設定:通過電位器線性設定不同功率的電機保護參數高速力矩輸出平穩,轉速穩定 低速大力矩輸出過流、過壓、欠壓、堵轉、霍爾信號非法、溫度保護速度信號輸出異常報警信號輸出
BLD2408A brushless DC motor driver is a high-tech product forlow-power brushless DC motor driver, which is independently developed by our company using high-performance DSP processor. Can be applied to host computer (PLC or MCU,etc.)PWM or analog speed control, can use manual speed regulation mode (with potentiometer, can also be external potentiometer manual speed regulation)PlD speed ring, current ring control
電機規格
Electricalspecifications
項目 model | |
輸入電源 input power | +12V~+30V直流電源 +12V to +30V DC |
輸出電流 current output | 額定電流8A 瞬間最大電流30A(<3S) Rated current8A Momentary maximum current 30A(<3S) |
絕緣電阻 insulation resistance | 常溫常壓下>500MΩ >500MQ atnormaltemperature and pressure |
冷卻方式 type of cooling | 自然冷卻 natural cooling |
使用場合 usage occasion | 避免粉塵油污及腐蝕性物體 Avoid dust,oil and corrosive objects |
使用溫度 usage temperature | -10°~+50° |
環境濕度 environment humidity | <80%RH不凝露不結霜 <80%RH No condensation or frost |
震動 shake | 最大不超過5.7M/S2 The maximum value is 5.7M/S2 |
保存 conserve | -20°~+125°避免灰塵最.好使用原包裝 To avoid dust,it is best to use the original packaging |

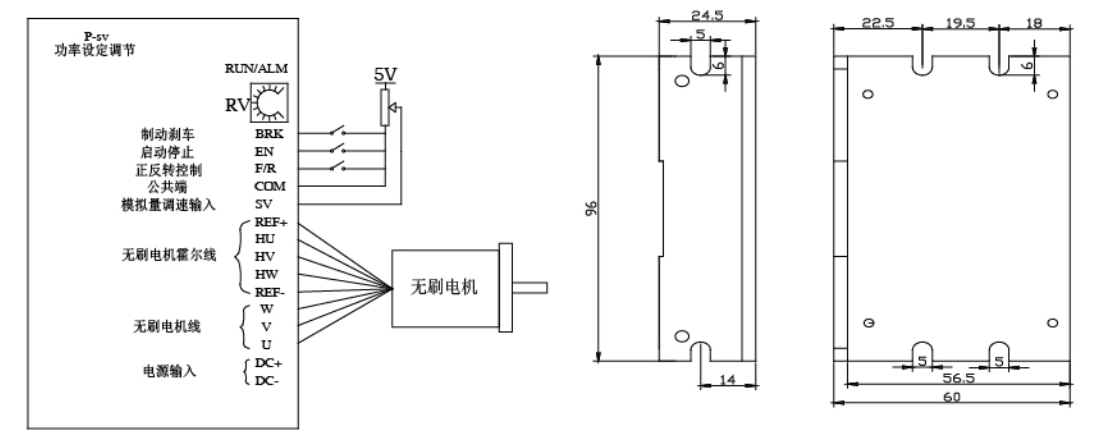

外形尺寸
Dimensions
